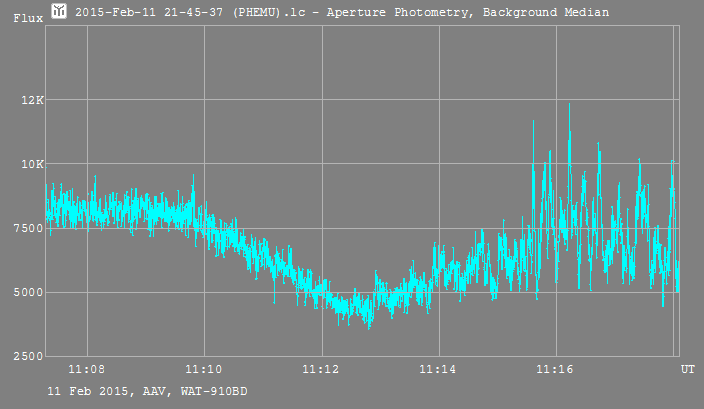

Reduced Light Curve: Signal-minus-Background, Normalized on Ganymede. The end of the event is cloud affected.

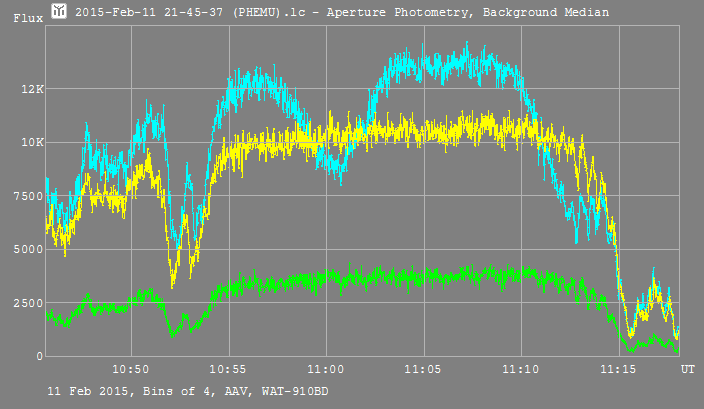

Reduced Light Curve for both the occultation and eclipse with no normalisation. The clouds affected areas are well visible.

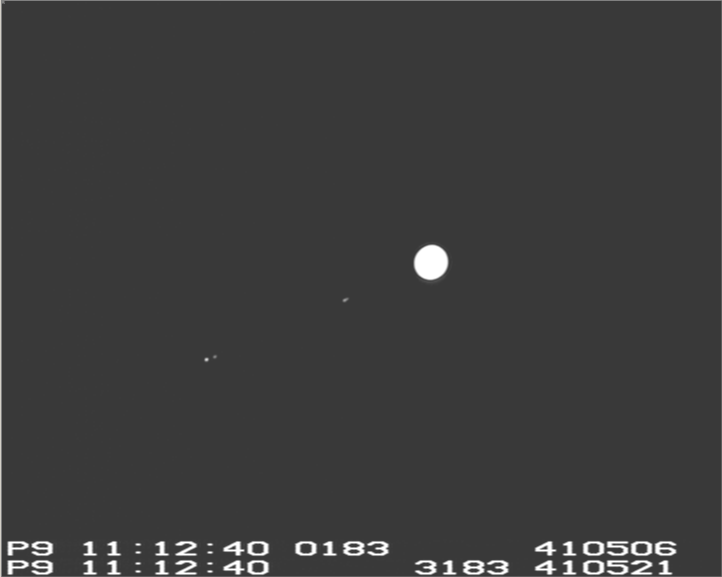

The target at the begining, mid time and end of the event:



Observation:

Using WAT910-BD; Gamma = Off; Gain = 11 dB; 1/500 sec exposure; AAV stacking of 8 frames in one; F/3.3 reducer

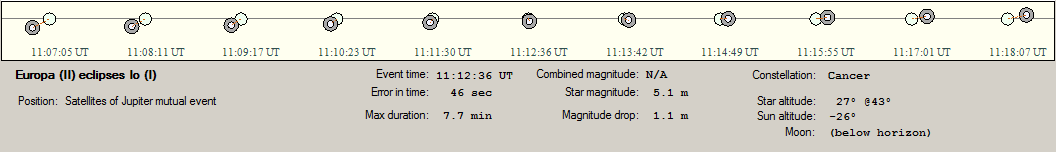

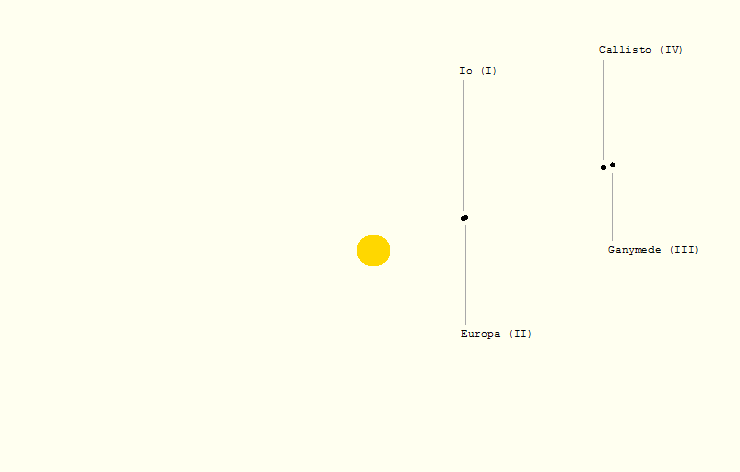

Prediction:





Tangra LightCurve: 2015-Feb-11 21-45-37 (PHEMU).lc (11.1 Mb)
